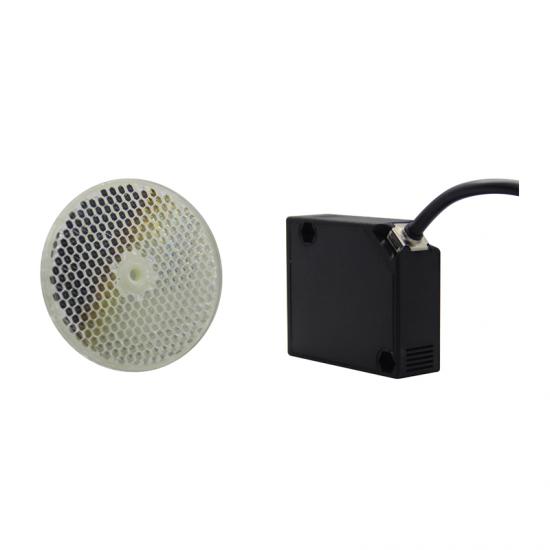

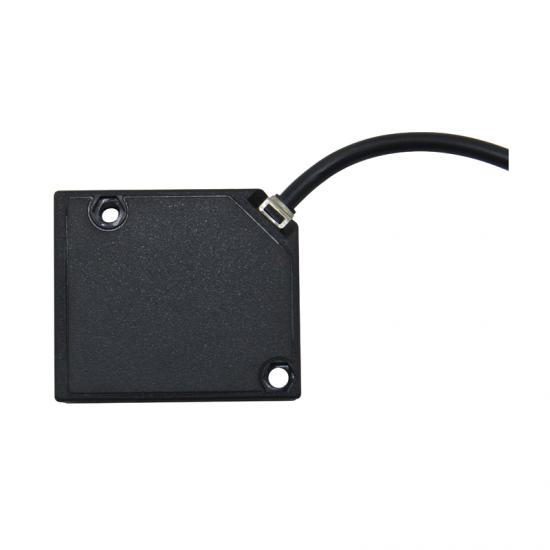

12- 24V infrared beam sensors photocell

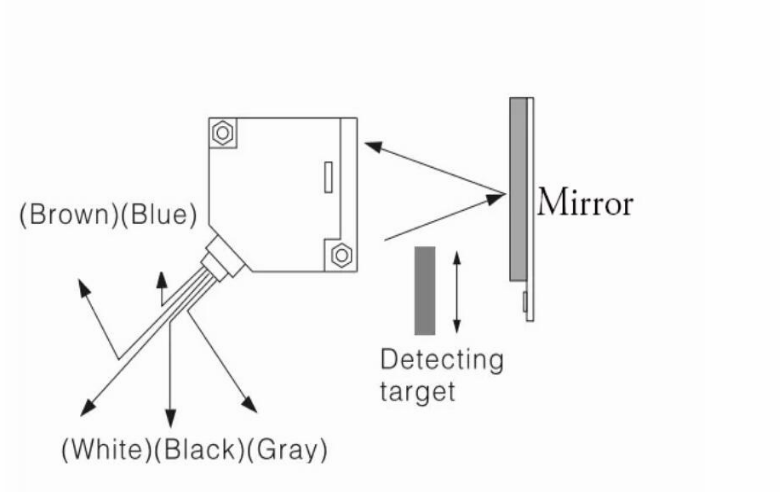

specular reflection, not need wire connection on transmitter side , easy for installation
Item No.:
HW-09Payment:
TT/PaypalProduct origin:
ChinaShipping port:

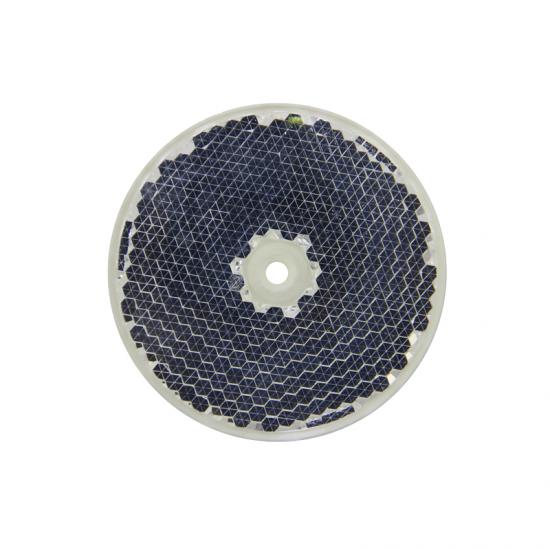

Shenzhen/xiamenPhotocell Light SensorMirror For Automatic Door
12- 24V infrared beam sensors photocell is widely used in packing lots and automatic gate operator, to notify the control board for approaching vehicles or people and avoid damage.
| Model | HW-09 |
Working temperature
|
-20℃~+60℃
|
|
Working Current
|
Transmitter: ≦ 30mA
Receiver: ≦ 50mA
|
Power Supply | AC/ DC 12~24V |
|
Infrared Wavelength
|
890nm
|
Protection Grade | IP65 |
|
Operating Distance
|
≥12M
|
Usage | For automatic gate operators |
Feature of Photoelectric Sensors
(1) Long Sensing Distance,can detect objects more than 12 m away.
(2) Virtually No Sensing Object Restrictions,can be used to detect virtually any object, including glass, plastic, wood, and liquid.
(3) Fast Response Time
The response time is extremely fast because light travels at high speed and the Sensor performs no mechanical operations because all circuits are comprised of electronic components.
(4) High Resolution,enable detecting very small objects, as well as precise position detection.
(5) Non-contact Sensing
There is little chance of damaging sensing objects or Sensors because objects can be detected without physical contact.
(6) Color Identification
The rate at which an object reflects or absorbs light depends on both the wavelength of the emitted light and the color of the object.
(7) Easy Adjustment
Positioning the beam on an object is simple with models that emit visible light because the beam is visible.
