Wireless 2 Way Rc Transmitter And Receiver

Wireless 2 Way Rc Transmitter And Receiver JJ-JS-092 is easy install and program:

1. Directly code learning and deleting through buttons that on the outside of receiver case.

2. Directly wire connect without need to open receiver case.

3. Work with open code both fixed code and rolling code.

Item No.:
JJ-JS-092
Payment:
TT/paypal
Product origin:
China
Color:
Black
Min order:
100
Shipping port:
Shenzhen/xiamen
Lead Time:
10-25days

Product Details

Wireless 2 Way Rc Transmitter And Receiver

Frequency: 433.92MHz
Channel: 2chs
Distance: 100m
Waterproof: IP40
Work current: 10-60mA
Power supply: 12-24V AC/DC
Memory Capacity: 200 codes Open code
Temperature: -25 ～+85 degree centigrade
Static current: 5mA+/-2

The receiver kit widely used in Automobile / motorcycle / electric vehicle modification; LED lamp / courtyard lamp control; electric door remote control modification; door control control; electric curtains and other motor positive and reverse control; and other intelligent control and security alarm field.

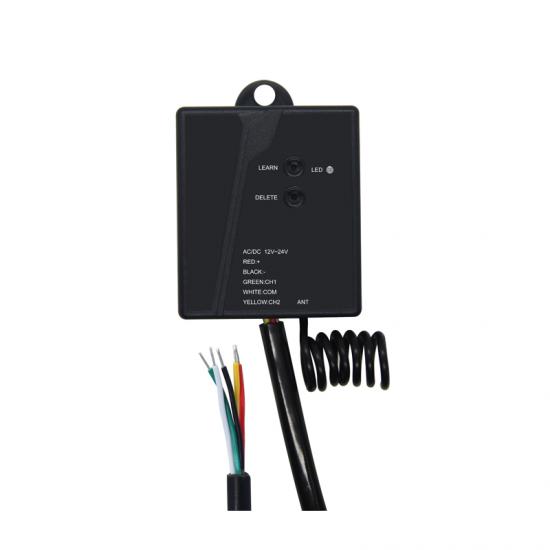

2 way receiver

---Set up and working process of the 2 way receiver

When the power is initiated the LED will light for 1 second and the receiver is ready for

instructions.

LEARNING CODE: Press Learning button for at least 1 second, the LED will light for 1 second,

go off for 1 second and then light again, press any button on the remote, if the code is learnt

successfully, the LED will blink; then release the button on the remote, the LED will be OFF. If

the remote cannot read the signal, the LED will light for 10 seconds and finish its learning

status.

PROGRAMMING METHOD:

A. Press “LEARN” once, the LED flashes once and the first channel (Latch) activates.

B. Press “LEARN” twice times, the LED flashes twice and the second channel (Latch)

activates.

C. Press “LEARN” three times, the LED flashes three times and the first channel (non-latch)

activates.

D. Press “LEARN” four times, the LED flashes four times and the second channel (non-latch)

activates

DELETING FUNCTION:

A. Deleting one code: Press “DELETE” for approximately 2 seconds, the LED will light, pressthe button of the code you no longer require and the code will be deleted.

B. Deleting all codes: Press “DELETE” for 10 seconds or until the LED flashes 10 times,

release the button, all codes will have been deleted.

---Operation

1. Transmitter button 1 controls receiver channel 1, transmitter button 2 controls receiver

channel 2, no matter users use button 1 to learn or button 2

2. Transmitter button 3 controls receiver channel 1, transmitter button 4 controls receiver

channel 2, no matter users use button 3 to learn or button 4

3. Non-latch: Keep pressing the button, receiver starts working. Release the button, receiver

stops working .

4. Latch: Press the button, receiver starts working. Press button again, receiver stops working .
