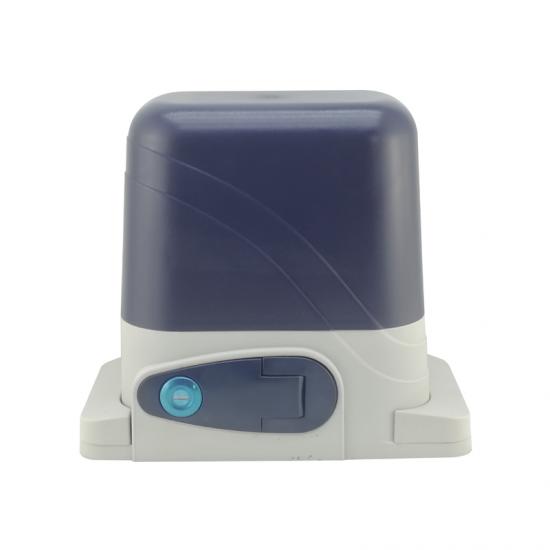

500KG max loading weight Electric Sliding Gate Opener
Soft start and soft stop
Manual relese keys in case of power supply failure.
Resistance sensitivity and auto-closing delay time adjustable.
DC motor avaible for back up power and solar power
Reliable magnetic limit supplied.
Availble to set pedestrian mode
Item No.:
PYM-A2402Payment:
TT/PaypalProduct origin:
ChinaShipping port:
Shenzhen/XiamenLead Time:
10-25days500kg 24VDC Electric Sliding Gate Opener

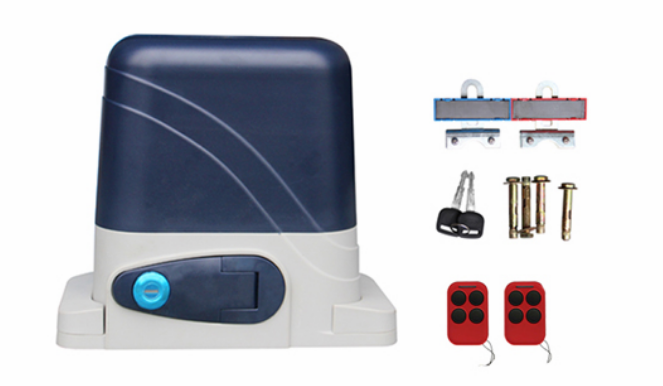

Standard kit includes:
1* sliding gate motor
2* remote controlls
1* build- in control panel
1* bulit in transformer
2* magnet limit
4* screws
2* allen key
1* manual book
Technical data :
| Model No | Sliding Door Opener PYM-A2402 |
| Rated voltage | 220VAC/110VAC |
| Electronic motor | 24VDC |
| Rated motor power | 120W |
| Gear modulus | M=4 |
| Max loading weight | 500KG |
| Open/close speed | 16m/min |
| Output speed | 50r/min |
| Output torque(N.m) | 14N.m |
| Limit switch type | Magnetic |
| Max pull force | 1100N |
| Working temperature |
-20°C~+55°C |
Function:
Totally integrated electrical mechanical system (excludes racks)
Soft start,soft stop.
Motor have enough space to built transformer inside
Manual release key in case of power supply failure
Gate auto stop and re-open when an obstacle is encountered
Reliable magnetic limit optional
Auto close time can be adjusted from approximately

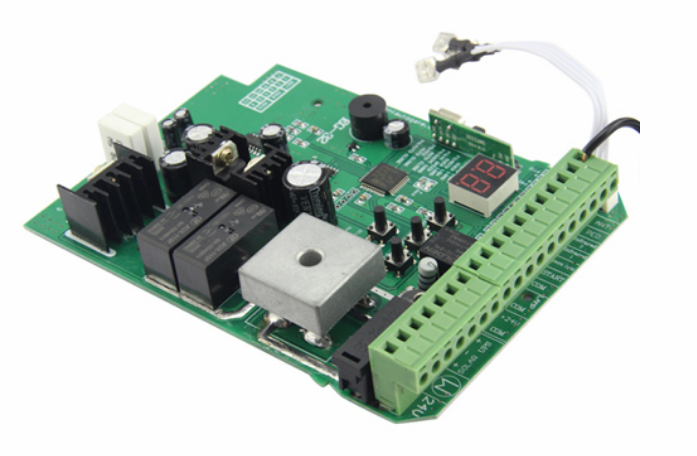

Technial data :
|
Model
|
EG-32 Gate Control Board |
| Voltage | 24VDC |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 150 pcs remote control |
| Output Voltage |
DC 24V |
Feature:
Availble to set pedestrian mode
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
