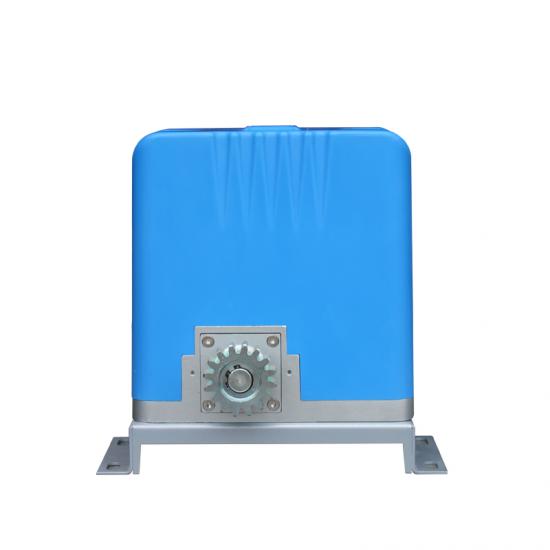

DC motor Automatic Sliding Gate Opener with built in control panel
500kg max gate loading weight
External foundation optional
Manual release key in case of power supply failure
Reliable spring limit/magnetic limit switch optional
Nice desin,heavy duty working with copper motor ,copper worm gear,
Control board have function for Pedestrian mode
Item No.:
PYM-B2205Payment:
TT/PaypalProduct origin:
ChinaMin order:
10Shipping port:
Shenzhen/Xiamen
| Model No | PYM-B2205 automatic Sliding door opener |
| Rated voltage | 220VAC/110VAC |
| Electronic motor | 24VDC |
| Rated motor power | 120W |
| Gear modulus | M=4 |
| Max loading weight | 500KG |
| Open/close speed | 12m/min |
| Driving mode | gear |
| Output speed | 50r/min |
| Output torque(N.m) | 22N.m |
| Limit switch type | Magnetic/spring |
| Max pull force | 1100N |
| Working temperature | -20°C~+55°C |
Function:
Totally integrated electrical mechanical system (excludes racks)
Manual release key in case of power supply failure
All metal gears make it durable and long lasting
Gate auto stop and re-open when an obstacle is encountered
Reliable magnetic and spring limit optional
Auto close time can be adjusted from approximately
Nice desin,heavy duty working with copper motor (many supplier use allumium motor ), copper worm gear
Technial data :
|
Model
|

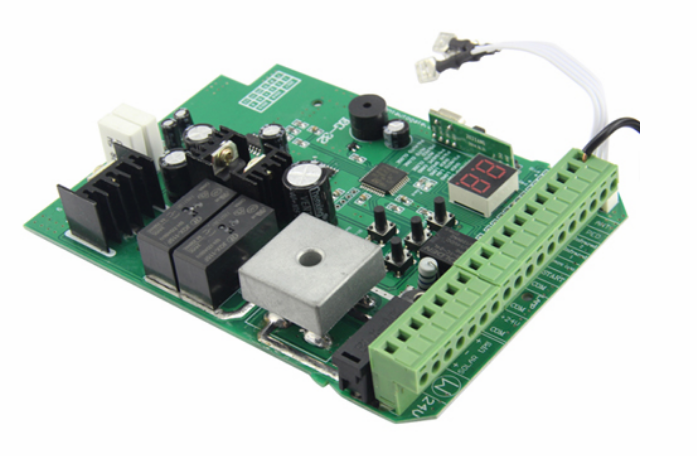

Slding door control board EG-32 |
| Voltage | 24VDC |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 150 pcs remote control |
| Output Voltage | DC 24V |
Feature:
Availble to set pedestrian mode
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
Previous :
220V/110V AC Heavy Duty Sliding Gate OperatorNext :
24VDC Automatic sliding gate opener kit door operatorIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
