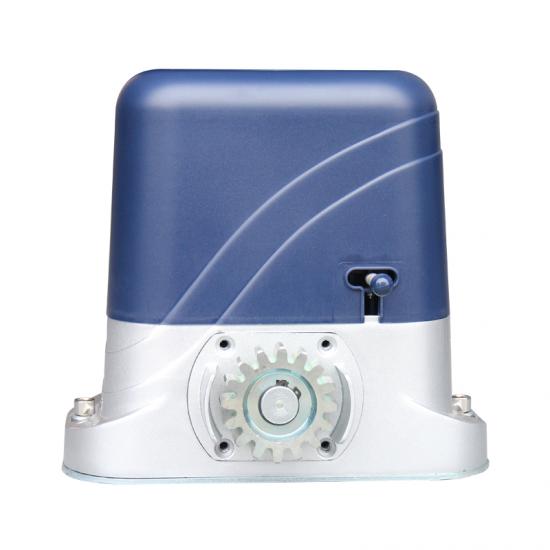

DC Automatic sliding motor with built in control panel
500kg max gate loading weight
Aluminum alloy base ,metal gear and shaft,heavy duty system
Manual release key in case of power supply failure
Reliable spring limit/magnetic limit switch optional
Soft start ,soft stop sliding gate opener
Control board have function for Pedestrian mode
Item No.:
PYM-A2401Payment:
TT/PaypalProduct origin:
ChinaMin order:
50Shipping port:
Shenzhen/Xiamen

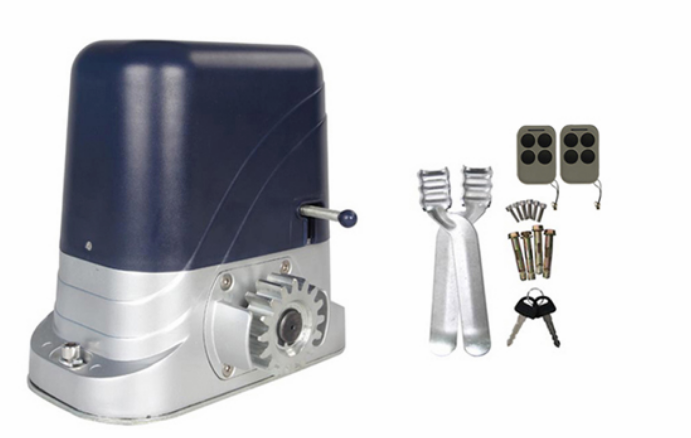

24VDC Automatic sliding gate opener kit door operator
Standard kit includes:
1* sliding gate motor
2* remote controlls
1* build- in control panel
2* magnet limit/limit block
1 set hardware accessories
1* manual book
Technical data :
| Model No | PYM-A2401 |
| Rated voltage | 220VAC/110VAC |
| Electronic motor | 24VDC |
| Rated motor power | 120W |
| Gear modulus | M=4 |
| Max loading weight | 500KG |
| Open/close speed | 16m/min |
| Output speed | 50r/min |
| Output torque(N.m) | 14N.m |
| Limit switch type | Magnetic sliding door operator |
| Max pull force | 1100N |
| Working temperature |
-20°C~+55°C |
Function:
Totally integrated electrical mechanical system (excludes racks)
Soft start,soft stop.
Manual release key in case of power supply failure
Gate auto stop and re-open when an obstacle is encountered
Reliable magnetic limit and spring limit optional
Auto close time can be adjusted from approximately
Technial data :
|
Model
|
EG-32 sliding gate control board |
| Voltage | 24VDC |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 150 pcs remote control |
| Output Voltage |
DC 24V |
Feature:
Availble to set pedestrian mode
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
Previous :
24VDC Solar kit Automatic Sliding Gate OpenerNext :
AC220V 300kg 500KG 600KG Rolling Shutter MotorIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
