English
Products

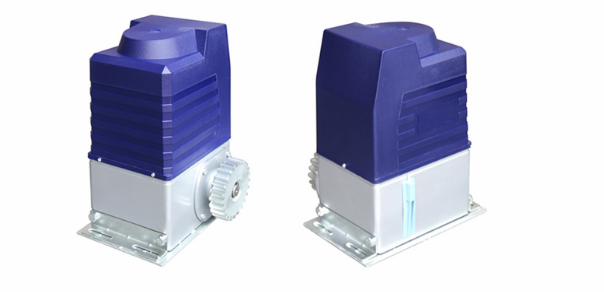

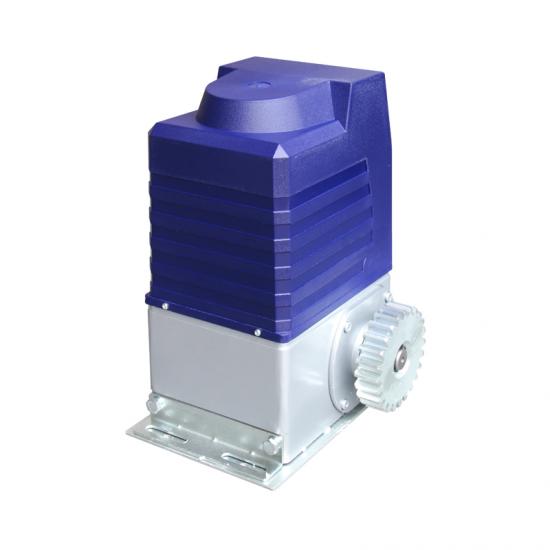

Oil-immersed sliding door opener
2000KG max loading weight and stylish sppearance
Manual release key in case of power supply failure
All metal gears make it durable and long lasting
Reliable magnetic and spring limit optional
Item No.:
PYM-C2201Payment:
TT/PaypalProduct origin:
ChinaShipping port:
Shenzhen/XiamenLead Time:
10-25daysHeavy Duty Automatic AC Sliding Gate Opener Operator

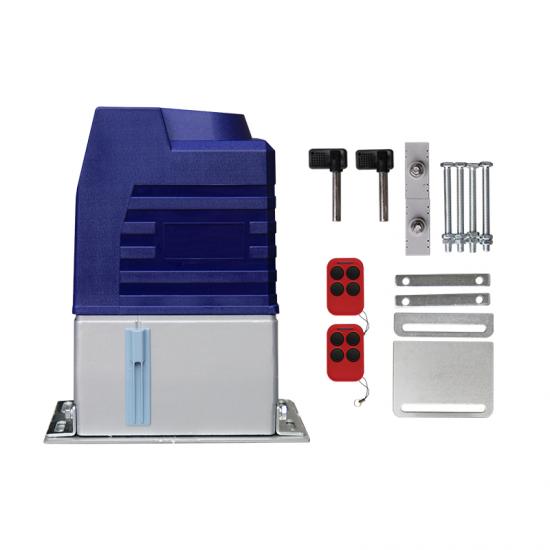

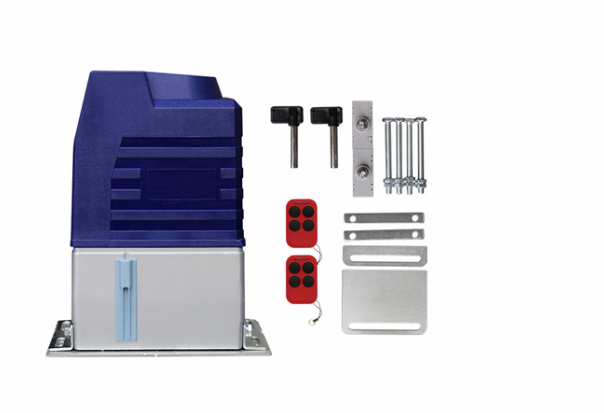

Standard kit included:
1*motor
1*built in control panel
2*limit block /magnets
1*metal baseplate
1 set hardware accessories
1 user manual
Technical data :
|
Product Name
|
Sliding gate opener PYM C2201
|
|
Material
|
Aluminium alloy
|
|
Color
|
Blue color
|
|
55Motor power
|
550W
|
|
Max loading weight
|
2000kg
|
|
Max thrust
|
1100N
|
|
Working speed
|
18m/min
|
|
Working temperature
|
-20°C~+50°C
|
Function:
Oil-immersed motor
Auto stop function can be set
Totally integrated electrical mechanical system (excludes racks)
Manual release key in case of power supply failure
All metal gears make it durable and long lasting
Reliable magnetic and spring limit optional
Gate will auto stop and re-open when an obstacle is encountered

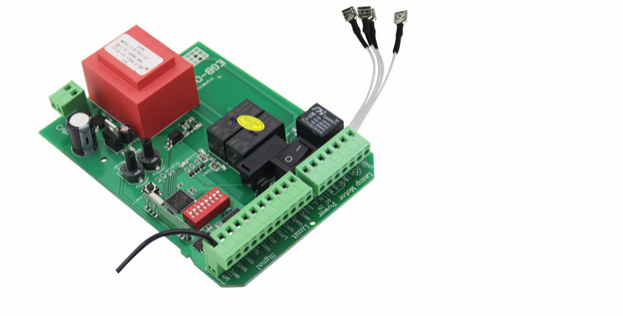

Technial data :
|
Model
|
EGB-02 |
| Voltage | 220V/110V |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 50 pcs remote control |
| Output Voltage | AC 24V |
Feature:
Availble to set pedestrian mode and condominium mode
A button at control for switch on /off power
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
